Series – EXP RSL metric

Series HC EXP-RSL Metric

Pull Rivet Metal Expansion Plugs
Plug – Case-hardened steel, black oxidation finish
Stem – Tempered steel, black oxidation finish

D1
mm		L1
mm		D2
mm		L2
mm		L3 max
mm		L4 max
mm		D3 +0.12/-0.0
mm		COD

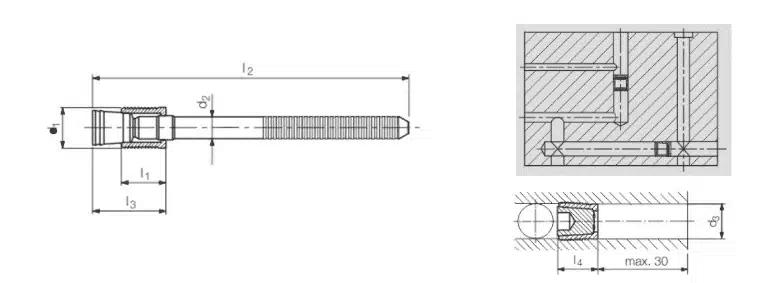

442.5699.06.54.0EXP-RSL-040
55.537110.07.55.0EXP-RSL-050
66.53.47312.08.06.0EXP-RSL-060
77.54.16814.09.07.0EXP-RSL-070
88.54.27015.010.58.0EXP-RSL-080
99.54.57317.011.09.0EXP-RSL-090
1010.54.757519.012.510.0EXP-RSL-100
Nominal Working Pressure - Hole Preparation
Diameters
mm		ETG-100
44SMn28 AISI1144		C14Pb
10.403		EN-GJL-250
EN1561		EN-GJS-500-7
EN1563		AlCu4Mg1
ENAW-2024-T3		AlMgSiPb
ENAW-6012-T6		G-AlSi7Mg
ENAC-42100 A356
Ø 4-10500BAR / 7200PSI450BAR/6500PSI
HOLE PREPARATION

Refer to the data in the catalog to determine the diameter and tolerances of the plug seat (D3).

  • The roundness of the hole must be within 0.05mm
  • The roughness of the hole must be between Rz 10-30 – Ra3.2-6.4 especially for hard materials
  • Spiral or longitudinal scratches should be avoided as they can affect the performance of the plug
  • Make sure the plug seat is clean and free from cutting oils, chips, etc

INSTALL PROCEDURE

  • The work area must be clean
  • RS plug are ready to use as shipped, do not clean or oil the plug or stem
  • Insert the shank into the tool, make sure the plug is against the nose of the tool (FIG.1)
  • Insert the plug in the hole, make sure that the nose of the tool is pressed against the part and perpendicular (FIG.2)
  • Activate the tool to expand the cork, the stem will break when reaching the expansion of the cork (FIG.3)
  • Be sure to purchase the correct tool for each size of cap to be installed

REMOVAL PROCEDURE

  • Using a punch, push the piece of stem out of the plug
  • Remove the plug with a point and remove the piece of stem from the hole
  • Make sure that you have removed chips, pieces of oil plug and any foreign bodies from the hole
  • Install a new RS plug
